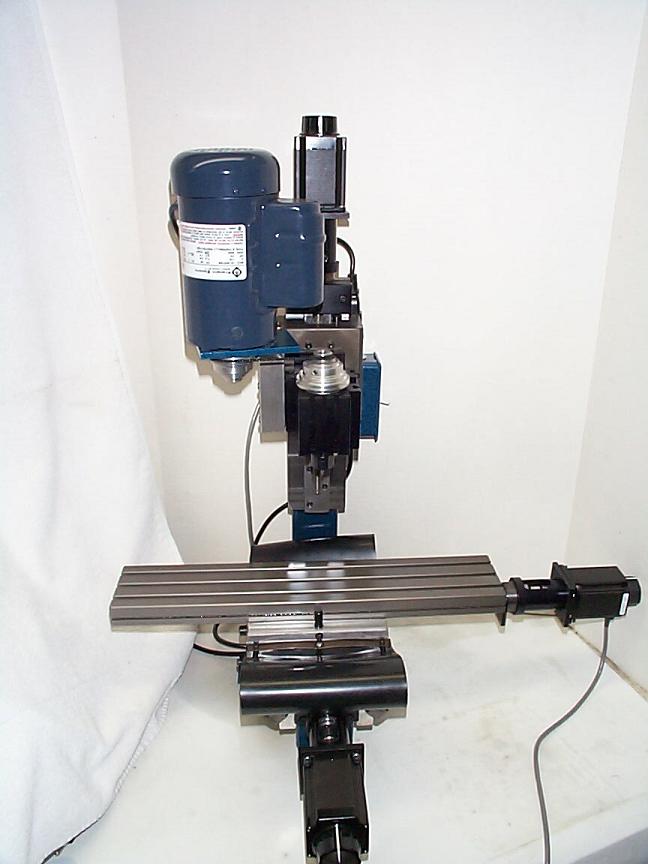

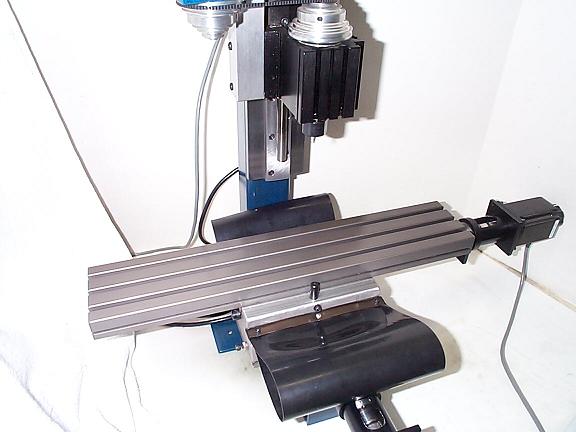

The MicroMill 2000 Desktop Machining System. (Shown with 200 oz-in. step motors, Box Way Z-axis assembly)

A full desktop machining system with capabilities to produce most anything from very simple to very complex geometric forms in wood, plastic, aluminum or steel.  Applications in jewelry design, prototyping new products, model making and small parts engineering production.

Machine Features:

  • Stepping Resolution 0.000125 in.

  • Mechanical repeatability 0.0005 in.

  • Spindle Speed 1100 - 11000 RPM

  • Travel: X = 9", Y = 5.75", Z = 6"

  • Rapid Travel of 30 in/min.

  • Universal Standard G-Code import.

  • Plugs directly into computer printer port.

  • Precision Mechanics.

  • Box way Z-axis assembly with ground steel plate and tapered brass gib.

  • Adjustable tapered brass gib on X-axis.

  • Ground steel sliding ways with adjustable brass gib.

  • Hard anodized aluminum table.

  • 1/2 inch 20 pitch Cr-Mo leadscrews with adjustable split bronze nuts on all axes.

Complete System Includes:

  • MicroMill with New Powerful 1/4 HP spindle motor (Not shown in Picture).

  • Pulley set with drive belt.

  • 1/8", 3/16", 1/4" collets with collet closer.

  • Electronic Chopper Driver Unit.

  • Custom Mach 3 control software interface.

  • 4th Axis Amplifier and Port Included.

  • Input/Output Port Included.

  • 200 oz-in. stepping motors.

  • Printer cable, power cable.

  • User's manual.

  • 1 Year system warranty.

Computer System Requirements:

  • Windows XP, 7 (32 bit) computer with Pentium 1 GHz or higher processor required.

  • 20 GB Hard Drive.

  • 512MB Ram.

  • Standard DB25 printer port output

Computer System Requirements with USB Option:

  • Windows XP, 7, 8 or 10 with > 1GHz processor

  • 20 GB Hard Drive.

  • 512MB Ram.

  • USB 2.0 Port

System Options:

  • MeshCam 3D Software. Imports DXF, STL or BMP files and creates the 3D G-code toolpath for contouring the surface.  www.grzsoftware.com

  • Full 4th axis rotary table system.

Pricing:

Description

Price

MicroMill 2000HD-ER system with Mach3 and ER spindle assembly

$2295.00

MicroMill 2000LE-ER system with Mach 3, 12 inch X-axis travel and ER spindle

MicroMill 2000AB LE-ER System / Mach 3 (Ball Screw Version)

$2495.00

$2995.00

USB Module Option: Win XP, 7, 8 or 10

$150.00

MeshCam 3D software

$200.00

Spindle and Auxiliary Control Module

$100.00

Rotary Table 4th axis for 2000HD or LE system

$600.00
