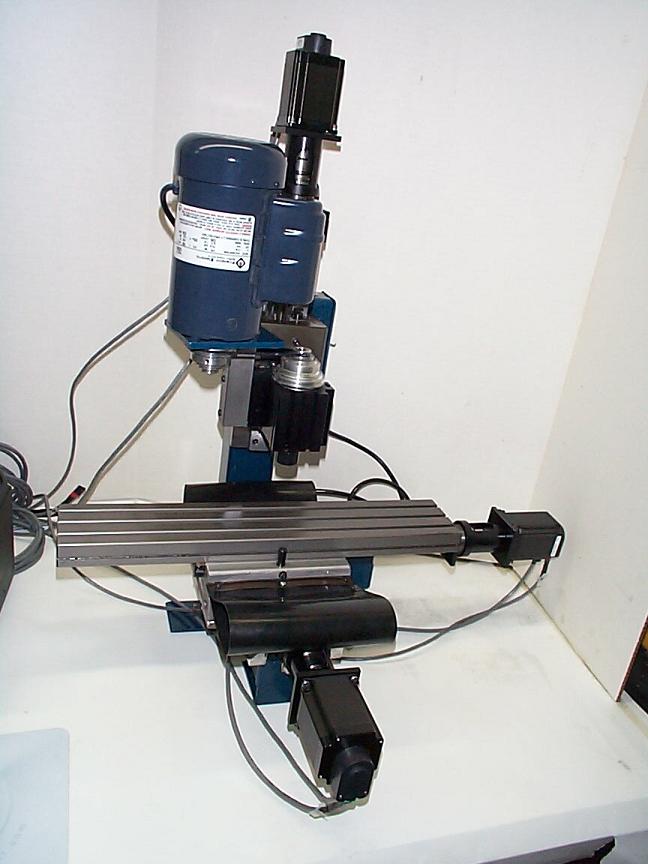

The MicroMill DSLS 3000 Desktop Machining System utilizing advanced Digital Sync Lock Servo (DSLS) control technology. (Shown with 200 oz-in. servo step motors, high resolution encoders,  Box Way Z-axis assembly and way covers)

A full desktop machining system with capabilities to produce anything from very simple to very complex geometric forms in wood, plastic, aluminum or steel.  Applications in jewelry design, prototyping new products, mold making, model making, engraving and small parts engineering production.

Machine Features:

  • Position increment resolution 0.000125 in.

  • Mechanical repeatability 0.0005 in.

  • Powerful 1/4 HP continuous duty AC motor.

  • Spindle Speed 1100 - 11000 RPM

  • Heavy Duty and Precision ER-16 spindle assembly.

  • Travel: X = 12", Y = 5.5", Z = 6"

  • Rapid Traverse Speed (G00)  up to 100 in/min.

  • Continuous Contouring Feedrate up to 60 in/min.

  • Precision Mechanics.

  • Box way Z-axis assembly with ground steel plate and tapered brass gib.

  • Adjustable tapered brass gib on X-axis.

  • Ground steel sliding ways with adjustable brass gib.

  • Hard anodized aluminum table.

  • 1/2 inch 20 pitch Cr-Mo leadscrews with adjustable split bronze nuts on all axes.

Control Features:

  • Advanced Digital Sync Lock Servo (DSLS) control using the latest microcontroller chip technology.

  • High resolution 1600 cpr encoders.

  • High power electronic chopper drive amplifier.

  • Standard computer parallel printer port input.

  • 4th axis amplifier and port.

  • Input/Output port.

  • Spindle on/off (M3/M5) and Aux on/off (M8/M9) relay control module

Software Features:

  • Custom Windows XP Mach 3 control interface.

  • 2D or 3D Graphic Part Display Window.

  • Complete G-code set of ALL G-codes.

  • Complete M-code set.

  • Import of standard DXF file formats.

  • Import of standard HPGL file formats.

  • Import of BMP and JPEG image files.

  • Custom Wizards containing 20+ common machining operations (Bolt holes, pocketing, thread milling, etc.)

  • 3D Digitizing Probe Input.

Complete System Includes:

  • MicroMill with New Powerful 1/4 HP spindle motor.

  • Pulley set with drive belt.

  • 3/16", 1/4" collets with collet closer

  • DSLS Electronic Control Driver Unit

  • Custom Mach 3 software control interface.

  • 4th Axis Amplifier and Port Included

  • Input/Output Port Included

  • 200 oz-in.  stepping motors with integral high resolution encoders

  • Printer cable, power cable

  • User's manual

  • 1 Year system warranty

Computer System Requirements:

  • Windows XP, 7 (32 bit) computer with Pentium 1 GHz or higher processor required.

  • 20 GB Hard Drive.

  • 512MB Ram.

  • Standard DB25 printer port output

Computer System Requirements with USB Option:

  • Windows XP, 7, 8 or 10 with > 1GHz processor

  • 20 GB Hard Drive.

  • 512MB Ram.

  • USB 2.0 Port

System Options:

Pricing:

Description

Price

MicroMill DSLS 3000  System with Mach 3

MicroMill DSLS 3000AB (Ball Screw) System / Mach 3

$2995.00

$3495.00

Complete MicroMill DSLS System with 4th Axis DSLS Rotary Table and Adjustable Tailstock

With Ball Screws

$3695.00

$4195.00

USB Module Option: Win XP, 7,8 or 10 operation

$150.00
